There are two main ways to route Serato’s’ audio into SYQEL.
1: First, if you are using Realtek Desktop Audio, that will show up here in the drop-down menu.
2: We can use a Virtual Audio Cable.
Let’s go over how to set up Serato’s audio preferences.

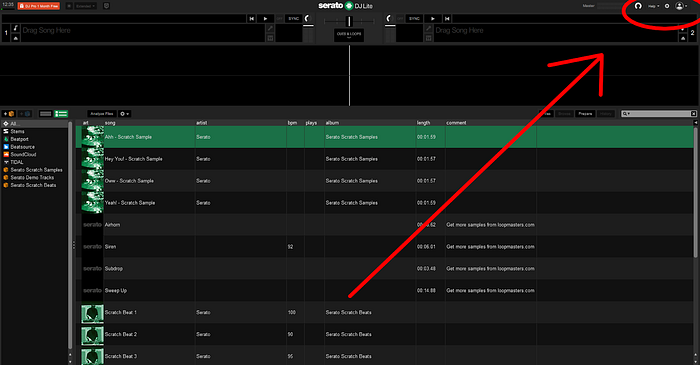

1: In Serato DJ, navigate to the top right and select settings (both windows and mac)
2: Select the audio menu.

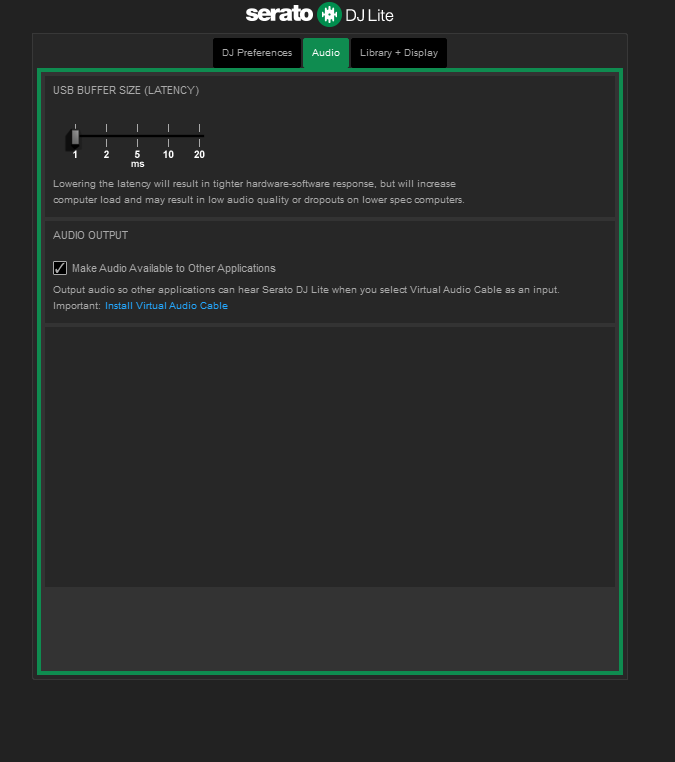

3: Simply select “Make audio available to other applications.
This will prompt you to download a virtual audio cable, let’s go over how to set that up.

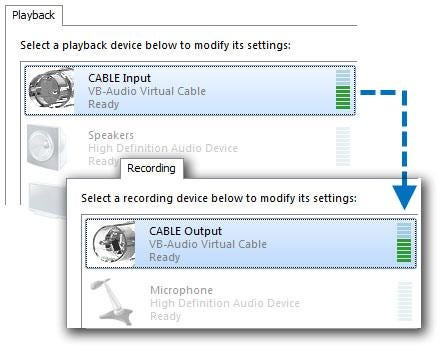

Download a virtual audio cable. They are easy to obtain, free, and open source.
Download HERE
Once you have your cable installed (virtually!), the process is the same as above. Head to Serato’s audio settings and select “Make audio available to other applications”.
We are almost ready to visualize our music.
Back in SYQEL, we need to select our parameters in our drop down menu.
1: Select “Line 1” Virtual audio cable as your input.
2: Then, select the playlist you created earlier.
3: Finally, if you saved any audio presets in the frequency reactiveness menu, select those here as well.
Before we start our visualizer, let’s go over how to route your audio on MacOS.
For users who are on Mac the process is much simpler. When you click on “Make audio available to other applications” you will be prompted to download Serato Virtual Audio. Follow the given prompt and you are set to go!
We are ready to start visualizing our sets directly from Serato DJ!
